vintage之声！性价比之选！evil robot c30

nesta1991 · 发表于 2020-1-27 16:07:47

Vintage音箱翘楚evil robot c30，一手购入，一直闲置吃灰，全部原装，110v，送品牌变压器，旋钮有微量杂音。非常好的vintage之声，magnatone音箱的PCB版本，18w/30w切换，classA/classAB双通道，家用排练两相宜。到手刀客勿扰。爽快的木架包邮。本地自取可议价！

nesta1991 · 发表于 2020-1-27 16:08:59

惯例自杀

nesta1991 · 发表于 2020-1-28 11:52:28

顶起来，喜欢的朋友可以私聊！
发自吉他中国iPhone客户端

吹水无抹嘴 · 发表于 2020-1-28 15:28:21

音色如何？

nesta1991 · 发表于 2020-1-29 02:18:01

加微信可发youtube与Supro 1696RT Black Magick Reverb 对比视频，个人理解取向不同，音质无差。
发自吉他中国iPhone客户端

nesta1991 · 发表于 2020-2-2 03:17:24

喜欢的朋友可以加微信交流！
发自吉他中国iPhone客户端

吹水无抹嘴 · 发表于 2020-2-2 17:00:13

8个管子？

吹水无抹嘴 · 发表于 2020-2-2 17:00:18

8个管子？

nesta1991 · 发表于 2020-2-3 17:32:11

Specifications:

Power:                               18W/30W Class A, cathode biased

Power Switches                   Power On, 18W, Standby and 30W Operation

Channels (2):                   Loudness A/B high and low

LEDs:                               Loudness A and B

Controls:                            Loudness A/B Volume, Tone A/B (pulling Loudness A switches between

                                       channels A and B)

Master Volume                   Controls overall volume level, maintains tone and distortion down

                                       to whisper levels


Vibrato:                            Intensity and Speed

Power Tubes                      (4) 6V6 (fixed bias)

Preamp Tubes:                   (3) 12AX7, (1) 12AU7, (1) 6AV6

Speaker Output:                8/16 ohm selector, output jack wired to speaker,
                                       disengages external speaker when inserted

Remote Speaker Output:    1/4” metal jack, wired in parallel with main speaker

Effects Loop                      Tube buffered, Send and Return (true bi-pass when not inserted)

Tone Selector:                   Normal, Mellow, and Bright

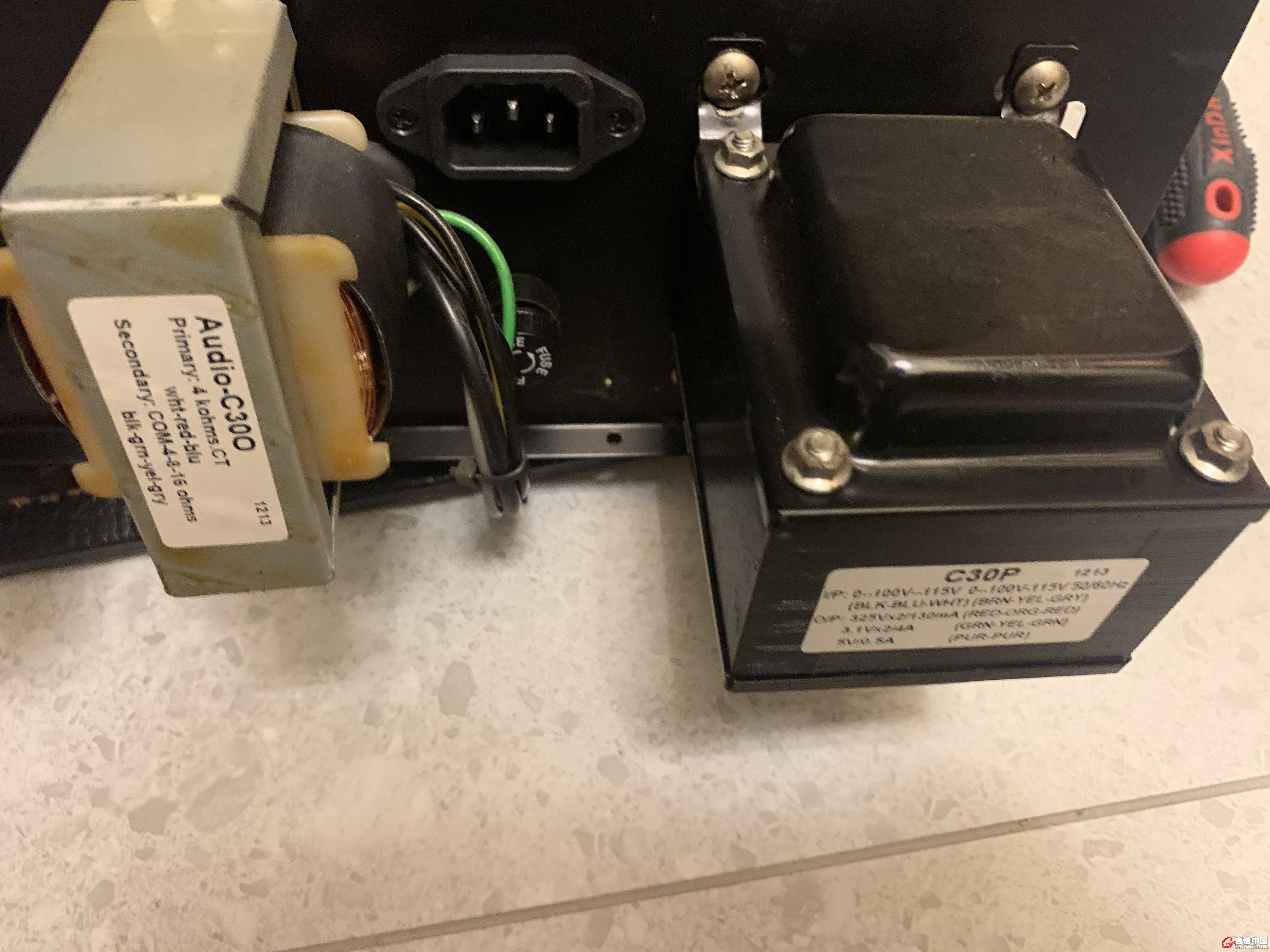

Transformers:                   Ear Tuned, Hand Wound

Speaker:                            Custom speaker (8 ohm) 12”

Chassis and Name Plate:    16 gauge steel, painted, screened and baked

Assembly:                         Hand made, circuit board (2 oz copper traces, thick circuit board),

                                       quality components

Front Jacks:                      (2) High and Low  ¼” metal jacks
Knobs:                               Black chicken head

Cabinet:                            Birch Wood

Tolex:                               Black, animal glue, finished corners

Grill Cloth:                         Black Mesh

Handle:                            Heavy duty black vintage style

Accessories:                      Two button foot switch, controls channels and vibrato

Weight:                            28 lbs

Dimensions:                      20”L x 9.5”W x 15”H

Cooling:                            Fan

Cover:                               Black (included)

Power:                               100VAC, 120VAC, and 240VAC – 50/60Hz – UL and CE transformers,

                                       USA and International

nesta1991 · 发表于 2020-2-3 17:32:18

Specifications:

Power:                               18W/30W Class A, cathode biased

Power Switches                   Power On, 18W, Standby and 30W Operation

Channels (2):                   Loudness A/B high and low

LEDs:                               Loudness A and B

Controls:                            Loudness A/B Volume, Tone A/B (pulling Loudness A switches between

                                       channels A and B)

Master Volume                   Controls overall volume level, maintains tone and distortion down

                                       to whisper levels


Vibrato:                            Intensity and Speed

Power Tubes                      (4) 6V6 (fixed bias)

Preamp Tubes:                   (3) 12AX7, (1) 12AU7, (1) 6AV6

Speaker Output:                8/16 ohm selector, output jack wired to speaker,
                                       disengages external speaker when inserted

Remote Speaker Output:    1/4” metal jack, wired in parallel with main speaker

Effects Loop                      Tube buffered, Send and Return (true bi-pass when not inserted)

Tone Selector:                   Normal, Mellow, and Bright

Transformers:                   Ear Tuned, Hand Wound

Speaker:                            Custom speaker (8 ohm) 12”

Chassis and Name Plate:    16 gauge steel, painted, screened and baked

Assembly:                         Hand made, circuit board (2 oz copper traces, thick circuit board),

                                       quality components

Front Jacks:                      (2) High and Low  ¼” metal jacks
Knobs:                               Black chicken head

Cabinet:                            Birch Wood

Tolex:                               Black, animal glue, finished corners

Grill Cloth:                         Black Mesh

Handle:                            Heavy duty black vintage style

Accessories:                      Two button foot switch, controls channels and vibrato

Weight:                            28 lbs

Dimensions:                      20”L x 9.5”W x 15”H

Cooling:                            Fan

Cover:                               Black (included)

Power:                               100VAC, 120VAC, and 240VAC – 50/60Hz – UL and CE transformers,

                                       USA and International

nesta1991 · 发表于 2020-2-3 17:34:03

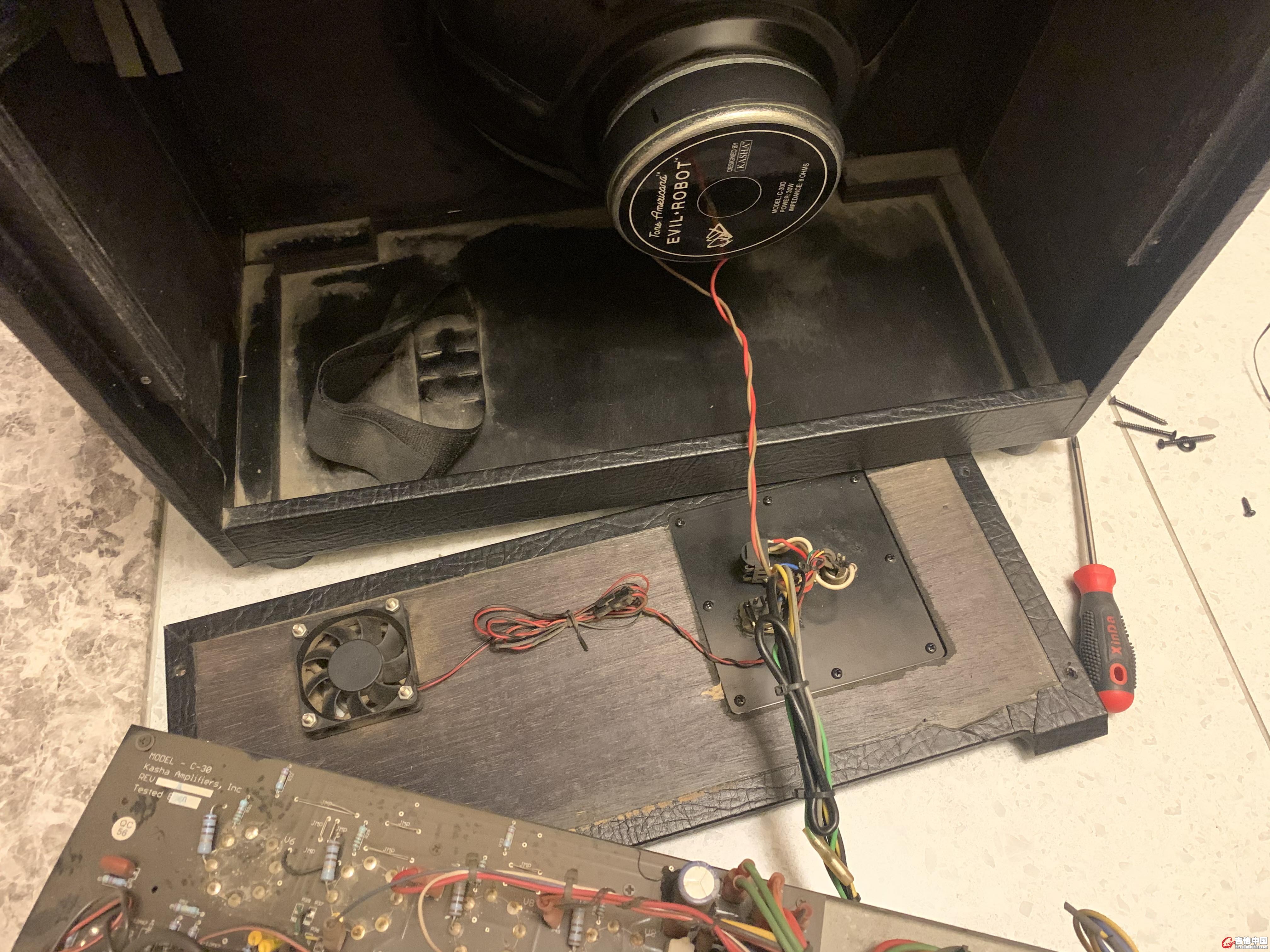

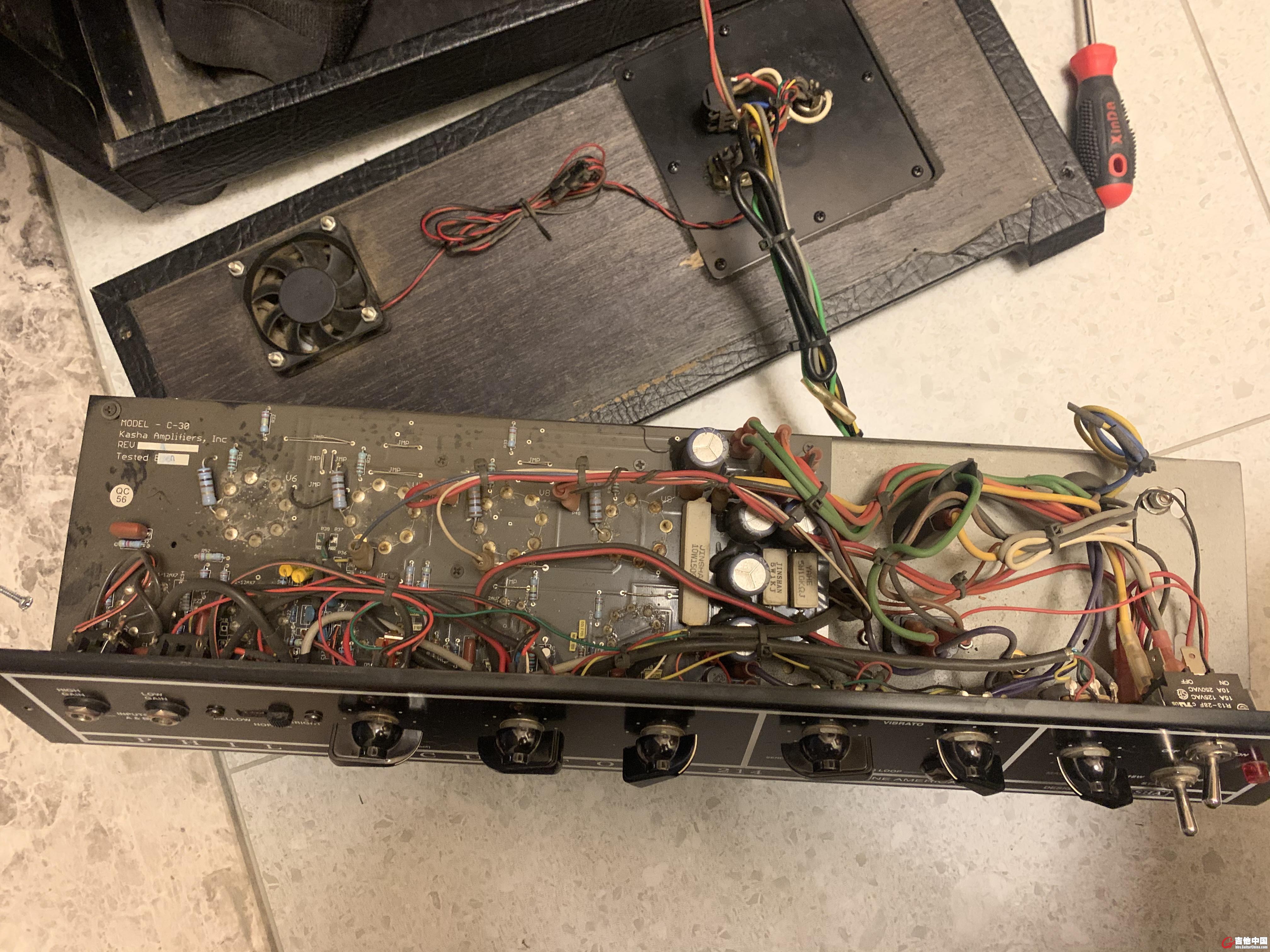

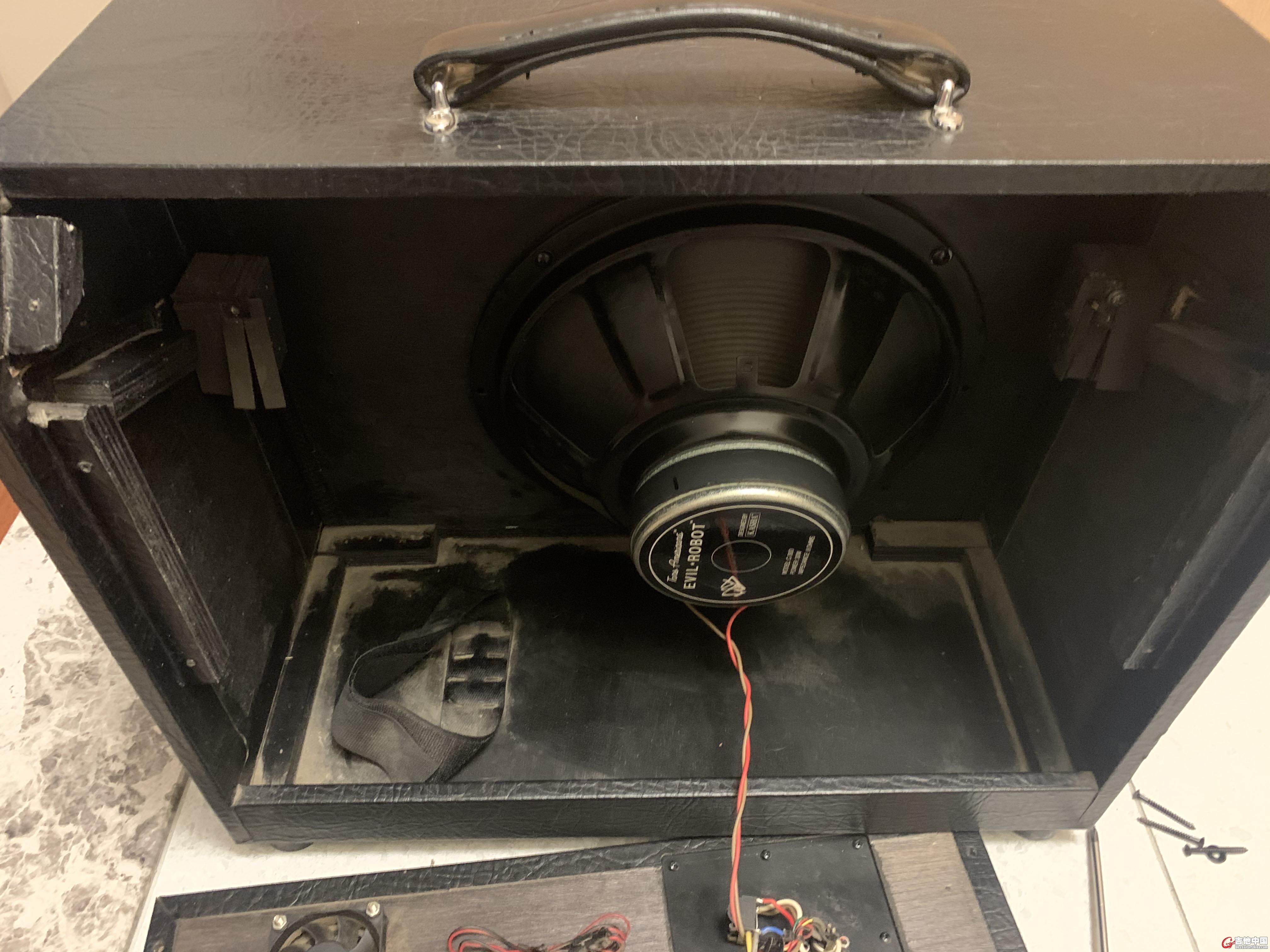

引用一下官网的简介，4根6V6后级，18w切换时只用两根，30w时四根。前级4根，一根整理管，共九根，图片是清灰时卸掉一根，管子全部原装。

nesta1991 · 发表于 2020-2-6 14:47:20

顶起来！喜欢的朋友可以详聊
发自吉他中国iPhone客户端

nesta1991 · 发表于 2020-2-9 16:39:36

nesta1991 · 发表于 2020-2-12 10:50:20

顶起来！祝兄弟们约炮成功！
发自吉他中国iPhone客户端

nesta1991 · 发表于 2020-2-17 16:16:24

感兴趣的朋友可以详聊，可换物
发自吉他中国iPhone客户端

nesta1991 · 发表于 2021-8-26 00:13:31

后级换6L6 全套JJ管后变成了一台优异的tweed 音箱，也是非常好的效果器平台，有loop踏板，没出过家门使用很少，爽快的送变压器，运输安全我保证！

nesta1991 · 发表于 2021-9-6 20:56:24

nesta1991 · 发表于 2021-9-6 20:56:26

nesta1991 · 发表于 2021-11-4 12:10:01
