| General |
| Model Name: | Champion™ 600 |
| Series: | Vintage Modified Amps |
| Amplifier Type: | Tube |
| Color / MSRP* / Part # : | - Two Tone
$199.99
233-0100-000
|
| Electronics |
| Inputs: | Two (Instrument and Microphone) |
| Extension Speaker Jack: | External Speaker Output |
| Channels: | One channel |
| Power Handling: | 5 watts |
| Rectifier: | Diode Rectifier |
| Controls: | Volume |
| Hardware |
| Cabinet Material: | Brown and Blonde Vinyl Covering; Vintage-Correct 1950 "Two-Tone" Cosmetics |
| Pilot Light Jewel: | Red Amp Jewel |
| Handle: | Leather Strap Handle |

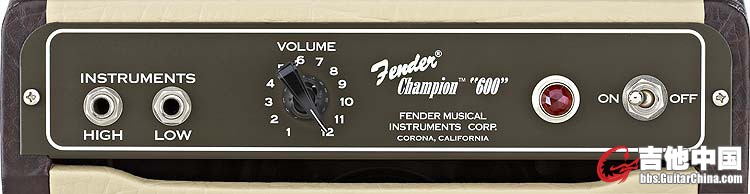

| Front Panel: | Chrome Front Panel |
| Input Impedance: | 1 M Input Impedance |
| Sensitivity: | 25 mV (volume at maximum for full power) |
| Amplifier Length: | 7.5" (19 cm) |
| Amplifier Width: | 12" (31 cm) |
| Amplifier Height: | 11" (27.9 cm) |
| Amplifier Weight: | 15 lbs (6.80 kg) |
| Speakers |
| Speaker: | One 6", 4-Ohm Special Design driver with ceramic magnet (0073904000) |
| Speaker Impedance: | 4 Ohm |
| Tubes |
| Preamp Tubes: | 1 x 12AX7 |
| Power Tubes: | 1 x 6V6 |
| Miscellaneous |
| Unique Features: | Tube Preamp and Tube Power Amp (One 12AX7 tube; One 6V6 tube). 5 watts Into a 6" Special Design Speaker. High-Gain and Low-Gain Inputs; Hotter Preamp Circuit than the 1950 Original for Warm Natural Overdrive when Turned Up. Single Volume Control. External Speaker Output. Brown and Blonde Vinyl Covering; Vintage-Correct 1950 "Two-Tone" Cosmetics. Leather Strap Handle. Red Jeweled Pilot Light. |
